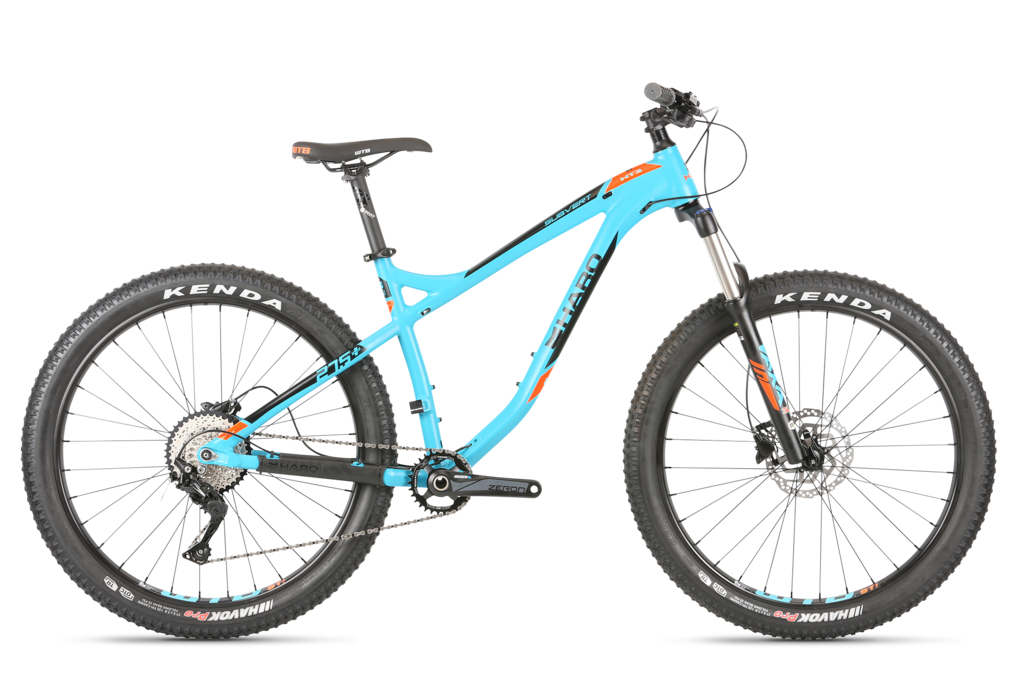

Haro Subvert HT3 Mountain Bike 2019

Subvert is a Plus specific series designed to master rocky terrains, offer confidence diving into turns, and be a fully capable off-road adventure companion in all weather conditions. The Subvert HT3 features an X6 alloy 27.5" frame featuring a Plus-specific geometry and a tapered head tube. Its ultra cushy ride comes courtesy of its efficient Vaxa 120mm travel Boost fork with tapered steerer tube and thru-axle, combined with WTB Scraper 27.5" Plus i35 rims w/ TCS 2.0 tape and Kenda Havoc 27.5 x 2.8" 120 tpi tires, which are all tubeless ready. Effortless shifting comes courtesy of a Shimano Deore 1x10 drive train fitted with a Suntour Zeron 1X Boost crankset with a 30t chainring for easy climbing.

Frame:	6061-T6 series alloy Hardtail, 27.5" Plus / 29" geometry, tapered 1.5" head tube, 73mm BB shell, 12x148mm Boost thru-axle dropouts
Fork:	HL Vaxa 868 HL/O 27.5" Plus, Tapered Steerer 1-1/8"-1.5", 110mm hub width, 120mm Travel, w/ hydraulic Lock Out, Post Mount, 15mm Thru-axle
Crank:	Suntour Zeron 1X AX-S-BT-30, Boost, 30T Steel Zig-Zag Chainring
Shifters:	Shimano Deore M6000, Right only, 1x10-spd, w/ optical gear display
Headset:	FPD DOZER-1160A-2 w/ 1.5" ACB bottom for 44/56mm Head Tube, w/ 8MM top cap
Wheelset:	WTB ST i35 27.5" TCS 2, 40mm width, alloy double wall rims w/ TCS i35 rim tape
Seatpost:	Pivit alloy micro adjust 31.6mm

Stem:	Pivit alloy Trail, 3D Forged, 0 Deg., 4 bolts, ext.: 60mm
Handlebars:	Pivit alloy, 20mm rise, 760mm wide; 9 Deg. sweep
Saddle:	WTB Volt Sport w/ color accents
Cassette:	Shimano CS-HG500-10 11-42T, 10-Speed
Brakes:	Shimano hydraulic BR-MT200 180/160mm rotors
Tires:	Kenda Havoc 27.5x2.8" tires, TCS, Aramid Bead 120 tpi
Bottom Bracket:	Suntour BB-BKA008-C, 73mm, sealed cartridge

All bikes purchased through City Grounds MUST be assembled by a certified bike shop mechanic. If the bike is NOT built by a certified bike shop mechanic, any warranty will be VOID. We will request for an assembly receipt as proof of professional installation.

For all warranty claims, please contact our Warranty Team at warranty@citygrounds.com. So that we can help you in a timely manner, make sure to include the following:

• 1. Order Number (we will confirm date of purchase and determine if the item is still under the manufacturer’s warranty time limit)
• 2. Brief description of the claim
• 3. Photographs
• 4. If the item is a bike or frame, include the serial number

We evaluate all warranties case-by-case to determine the best course of action and get you serviced to the best of our ability!

Warranty does not apply to the following:

• • Any part of a product that has been installed, altered, repaired, or misused
• • Damage from unintended style of riding, abuse, neglect, accident, and racing
• • Normal wear and tear of any product (including but not limited to - saddles, grips, tires, tubes, cables, brake pads, chains)
• • Failure to provide regular maintenance of any product

Labor and shipping are the responsibility of the customer. We do not cover parts purchased and labor performed by another bike shop.

Note: Warranty is for original owner only.
